Microina was founded in January 2022 in Ankara, Türkiye. Founders of Microina have over 30 years of combined experience on RF/Microwave component design for Radar, EW and SATCOM applications. We provide high quality RF&Microwave products to our customers according to their specific requirements. Our product offerings include Pin Diode Switches, Phase Locked Oscillators(DRO), Up/Down Frequency Converters, Frequency Synthesizers, Solid State Power Amplifiers, Gain Blocks, Transmit/Receive Modules, ultra-low phase noise OCXOs and Passive Modules. We are also specialized in customized solutions and Form-Fit-Function replacements from DC to 44 GHz. With our high-volume production experience, we offer reduced development cost and time to market.

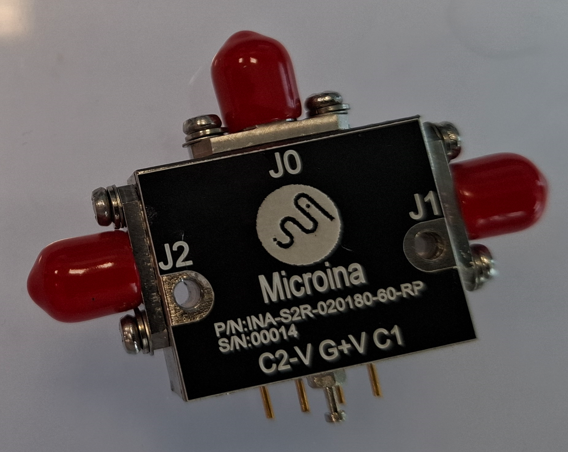

Microina P/N: INA-S2R-020180-60-RP Specifications: - Insertion Loss: 1.5 dB typ. (2 dB max.) - Isolation: 65 dB typ. (60 dB min.) - DC Supply Voltages: +5V & -5V to -15V - Mechanical Dimensions: 27.9 x 21.6 x 9.7 mm - Operating Temperature: -40 ℃ to +85 ℃
Microina P/N: INA-DRA-002180-G29P27 Specifications: - Small Signal Gain: 29 dB - Gain Flatness: +/- 1 dB typ. - Output Power (P3dB): 27 dBm min. - Operating DC Supply: 12V - Operating DC Current: 430 mA - Mechanical Dimensions: 40 x 26 x 10.3 mm - Operating Case Temperature: -40 ℃ to +85 ℃

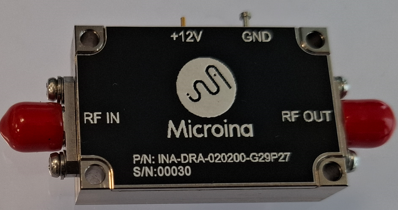

Microina P/N: INA-DRA-020200-G29P27 Specifications: - Small Signal Gain: 30 dB - Gain Flatness: +/- 1.5 dB - Output Power (P3dB): 27 dBm - Operating DC Supply: 12V - Operating DC Current: 450 mA - Mechanical Dimensions: 40 x 26 x 10.3 mm - Operating Case Temperature: -40 ℃ to +85 ℃

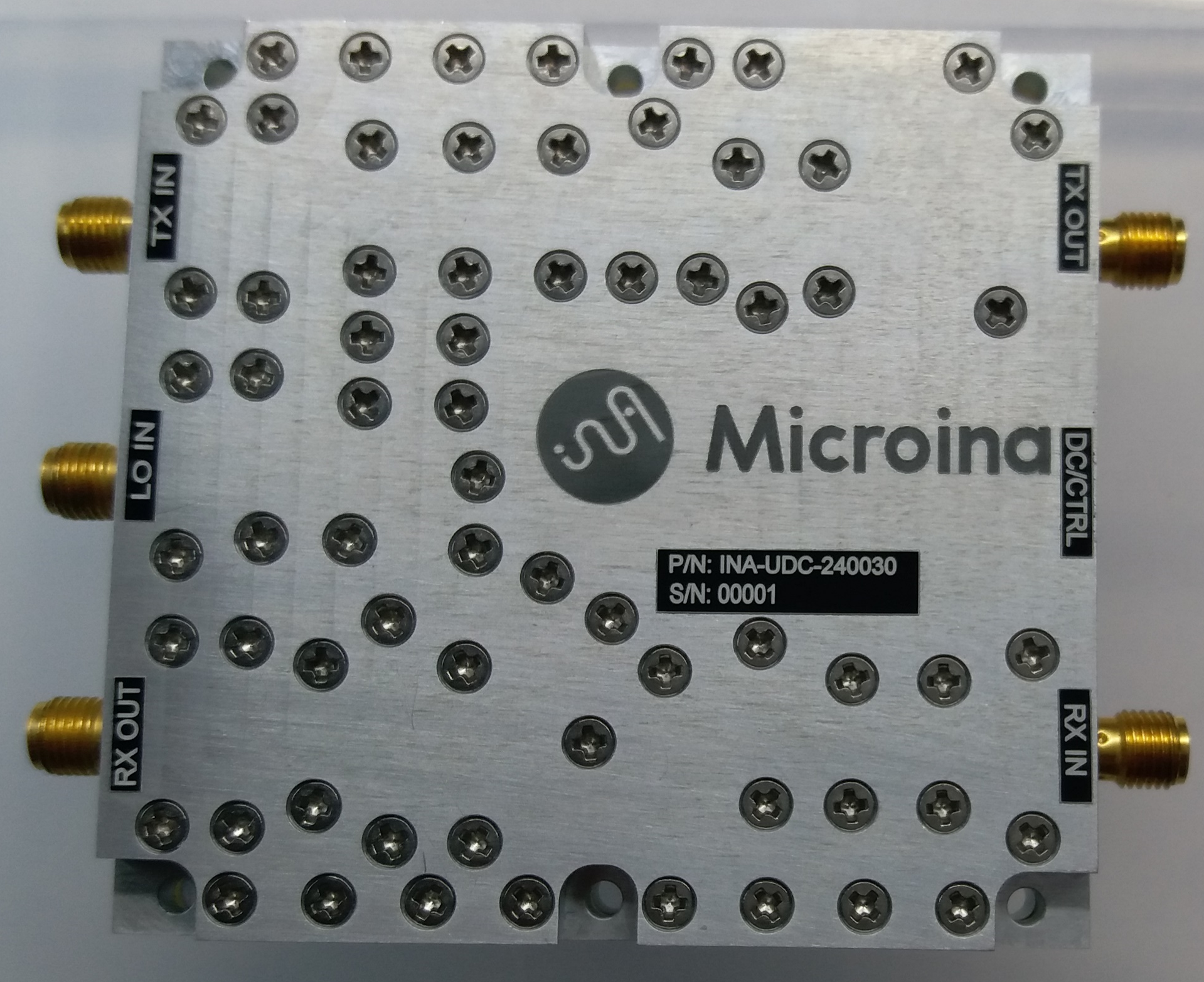

Microina P/N: INA-UDC-240030 Specifications: - CW and Pulsed Operation - Integrated LO x2 Multiplication - TX Power Detection - Instantaneous BW: 1 GHz - Rise&Fall Time: <500 nsec - Spurious & LO Leakage: <-70 dBc - TX Power: 2W (33 dBm) - TX Conversion Gain: 35 dB - RX Noise Figure: 5dB - RX Conversion Gain: 35 dB - DC Supply: 12V - DC Power: <10W - Mechanical Dimensions: 73.6 x 70 x 15 mm - Operating Temperature Range: -40 ℃ to +70 ℃

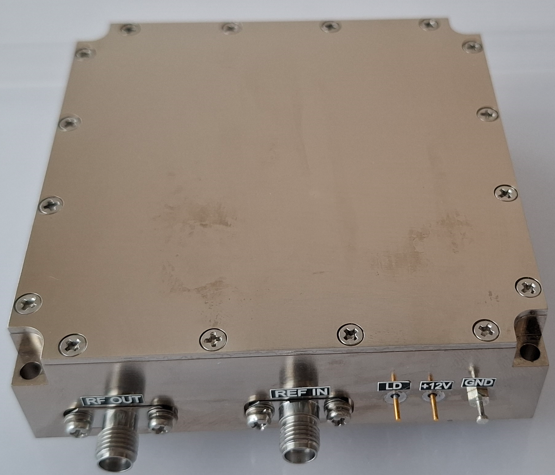

Microina P/N: INA-PLO-40000-100_IE Specifications: - 40 GHz Output - Output Power: 18 dBm typ. - Phase Noise: -110 dBc/Hz @ 10kHz offset - Spurious & Sub-Harmonics: -80 dBc typ. - External 100 MHz Reference - Internal 100 MHz TCXO Reference with Auto-Switching - Supply Voltage: 12V - Supply Current: 400 mA typ. - Operating Temperature: -40 ℃ to +75 ℃ (Base Plate) - Dimensions: 80 x 80 x 22 mm

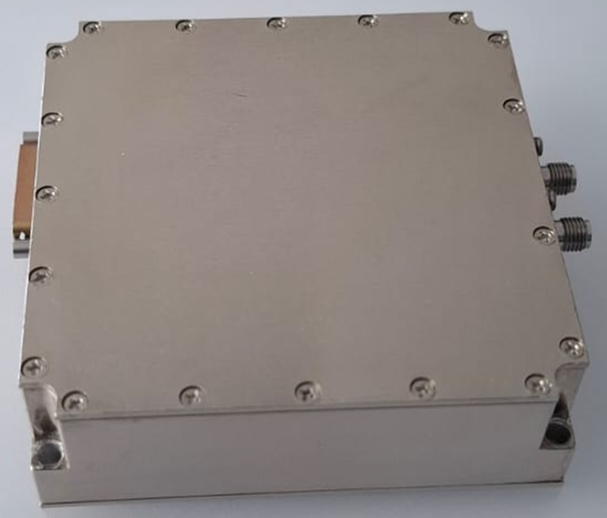

Microina P/N: INA-SSG-0518 Specifications: - Operating Frequency Range: 0.5-18 GHz - Frequency Resolution: 1 MHz - Output Power: 27 dBm typ. - Pulse Modulation (PW: 100ns min.) - Amplitude Control Range: 60 dB, 0.5dB step - +12V DC Supply - RS422 Control Interface - Mechanical Dimensions: 90 x 90 x 30 mm
Microina P/N: INA-SSG-1844 Specifications: - Operating Frequency Range: 18-44 GHz - Frequency Resolution: 1 MHz - Output Power: 20 dBm typ. - Pulse Modulation (PW: 100ns min.) - Amplitude Control Range: 60 dB, 0.5dB step - +12V DC Supply - RS422 Control Interface - Mechanical Dimensions: 90 x 90 x 30 mm

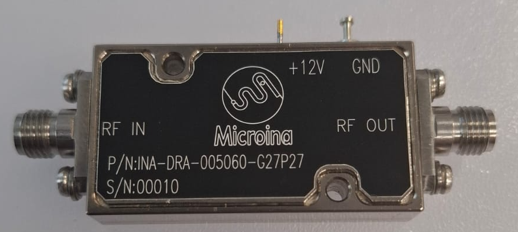

Microina P/N: INA-DRA-005060-G27P27 Specifications: - Small Signal Gain: 27 dB - Gain Flatness: +/- 1.5 dB typ. - Output Power (P1dB): 27 dBm min. - Operating DC Supply: 12V - Operating DC Current: 220 mA - Mechanical Dimensions: 40.4 x 21.8 x 8.4 mm - Operating Case Temperature: -40 ℃ to +85 ℃

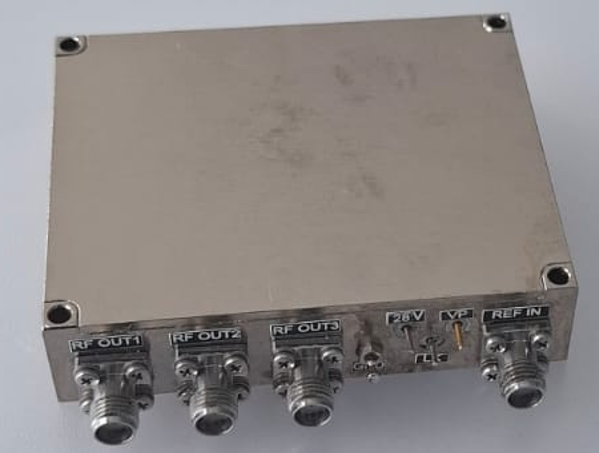

Microina P/N: INA-PLO3-13600-100-E Specifications: - Ku Band Output - Triple Output - Output Power: 14 dBm typ. - Phase Noise: -120 dBc/Hz @ 10kHz offset - Spurious: -100 dBc typ. - External 100 MHz Reference - Supply Voltage: 28V - Supply Current: 280 mA typ. - Operating Temperature: -40 ℃ to +75 ℃ (Base Plate) - Dimensions: 57.15 x 69.85 x 16 mm

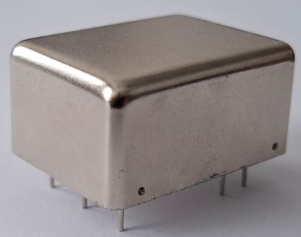

Phase Noise: -185 dBc/Hz @ >100 kHz offset Output Power: 18 dBm Operating Temperature Range: -40C +85C
Phase Noise: -160 dBc/Hz @ >100 kHz offset Output Power: 13 dBm Operating Temperature Range: -40C to +85C

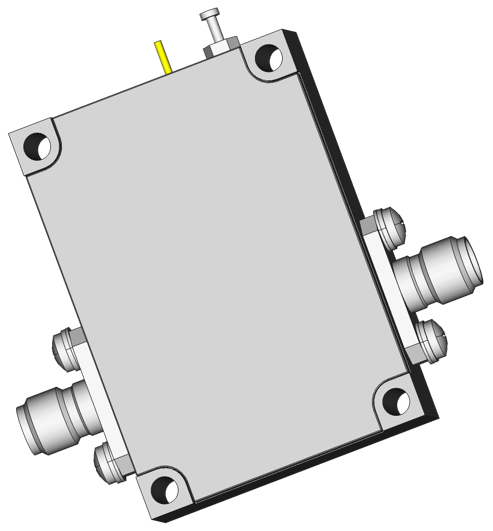

Microina P/N: INA-DRA-180440-G20P23 Specifications: Gain: 20 dB Output Power (P1dB): 23 dBm DC Supply Voltage: 5V DC Supply Current 1A Dimensions: 30 x 42 x 10.3 mm
Microina P/N: INA-PLO-10000-100-E Specifications: - 10 GHz Output - Output Power: 15 dBm typ. - Phase Noise: -120 dBc/Hz @ 10kHz offset - Spurious: -100 dBc typ. - External 100 MHz Reference - Supply Voltage: 12V - Supply Current: 180 mA typ. - Operating Temperature: -40 ℃ to +75 ℃ (Base Plate) - Dimensions: 57.15 x 57.15 x 16 mm
